Your first entity

Create an entity, define its schema, add items, and meet every field type DFC offers.

An entity without a schema is an empty folder. The schema is the interesting part: it decides what fields its items have, what each one accepts, and which of them a flow can rely on being there.

Create the entity

  1. Open DFC in the CX Portal’s left navigation. You are looking at the entity tree for the instance selected at the top of the page — check it says the demo instance before you go further.

  2. Create a new entity at the top level and name it <your initials> Announcements. Give it a description that says what its items are for, not what it is called.

  3. Open the new entity. It has no fields yet, so it can hold no items.

Give it a schema

Add these four fields. The first one is special, so read the callout below before you start.

Field Type Notes
name String The primary field
message Prompt What the caller hears
active Boolean Whether the announcement is playing
priority Number 1 to 10, for ordering
Name your fields carefully, because you cannot rename them later

Field settings can be changed afterwards, but a field cannot be deleted or renamed once items hold data in it. The name is also exactly what a contact flow asks for, character for character, so message and Message are different fields as far as the flow is concerned.

Exactly one primary field, and it has to be a string

Every entity needs one field marked as primary, it must be required, and its type must be String. The primary field is the item’s name in the tree and the last segment of its path, so it is what a contact flow uses to ask for one item rather than all of them. An entity with two primary fields, or a primary field that is a number, will not save.

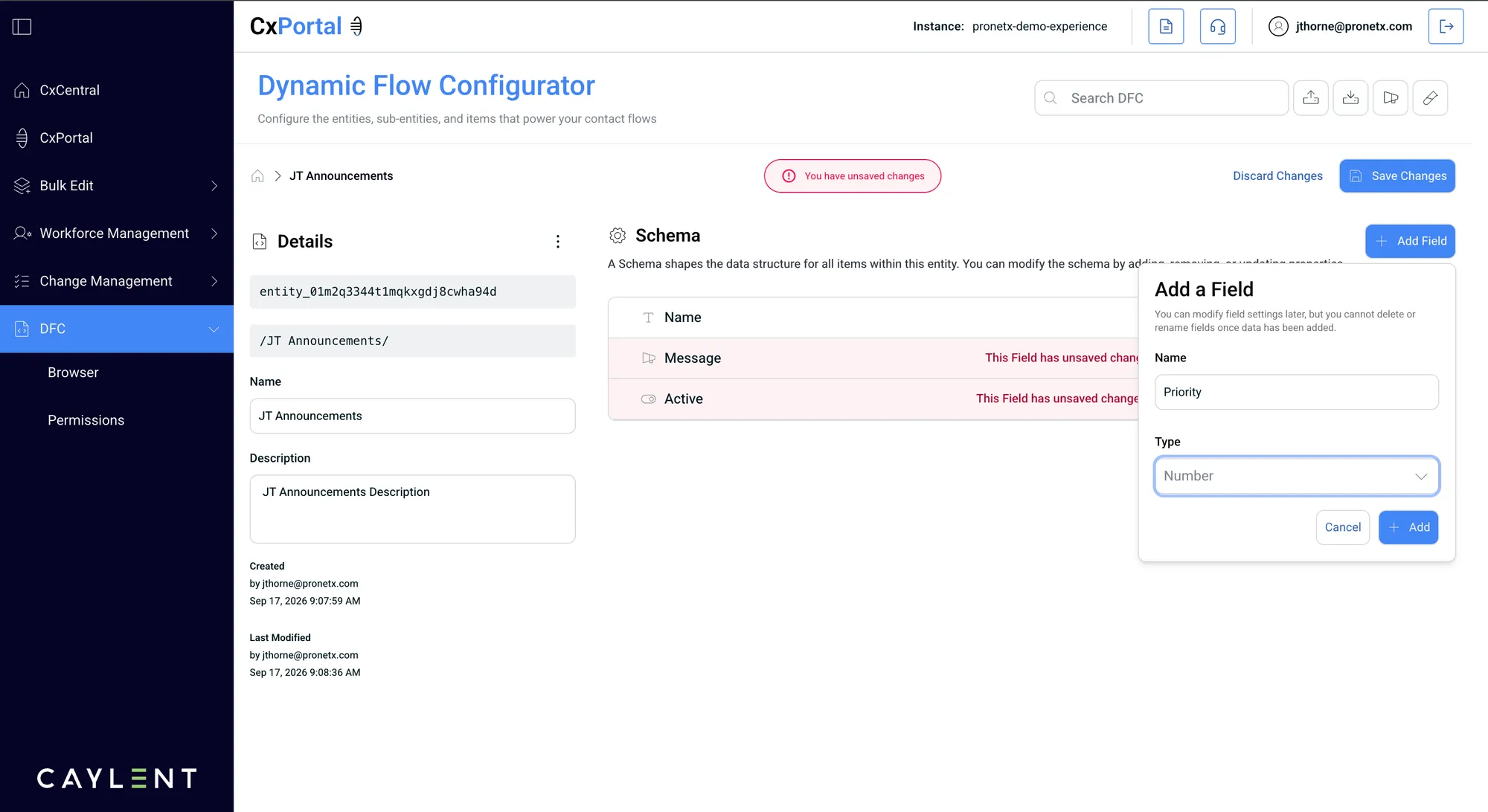

The JT Announcements entity with three fields already added and the Add a Field panel open, naming a Priority field of type Number
Schema edits are staged rather than applied one at a time, which is what the unsaved-changes banner is telling you. Save Changes commits the lot.

The field types

You will not use all of these on day one, but knowing what exists stops you modelling something badly.

Type Use it for Shape a flow receives
Amazon Connect Resource A queue, prompt, flow or phone number in the instance An object with the resource name and arn
Boolean Switches "true" or "false" as text
Closure Dated closures, one-off or recurring A list of date ranges
Date Time A single moment The timestamp
Hours of Operation A weekly opening pattern A day-by-day structure
JSON Structured data with no fixed shape As authored
Number Thresholds, counts, durations The number
Pick List A closed set of choices The chosen value, or a list if multi-select
Prompt Anything a caller hears An object with kind and content
Reference Pointing at an item in another entity The whole target item, inlined
String Names, codes, free text The text
YAML Structured data, authored as YAML As authored
Prompt is not a string

A Prompt field carries both the words and how to say them. It arrives in the flow as an object, so a flow reads $.External.data.message.content, not $.External.data.message. Get this wrong and the caller hears silence where a prompt should be.

Field settings worth knowing

Each field has more than a type. Four settings change how it behaves:

  • Required — an item cannot be saved without it. Use it sparingly; a required field added to an entity that already has items makes every one of them invalid until someone edits them.
  • Presentable — whether the field shows in the item list as a column. Turn it on for the handful of fields that identify an item at a glance.
  • Overridable — whether a child entity is allowed to change the value it inherits. Covered on the hierarchy page.
  • Conditions — show a field only when another field has a particular value. A closureReason field that only appears once closed is ticked keeps the form honest without needing two entities.

Add two items

  1. In your new entity, create an item. Set name to Roadworks, write a short message, set active on and priority to 1.

  2. Create a second item named Weather, with active off.

  3. Look at the entity’s item list. Both items are there, and the fields you marked presentable are the columns.

Your items now have paths. The path is the entity tree position plus the primary field value:

The paths a flow could ask forText
/<your initials> Announcements/Roadworks
/<your initials> Announcements/Weather
Ask for the entity, not the item

A path ending in a slash asks for the whole entity — every item in it, plus the schema. A path ending in an item’s primary field asks for one item. Flows normally want the second; a flow that needs to loop over options wants the first.

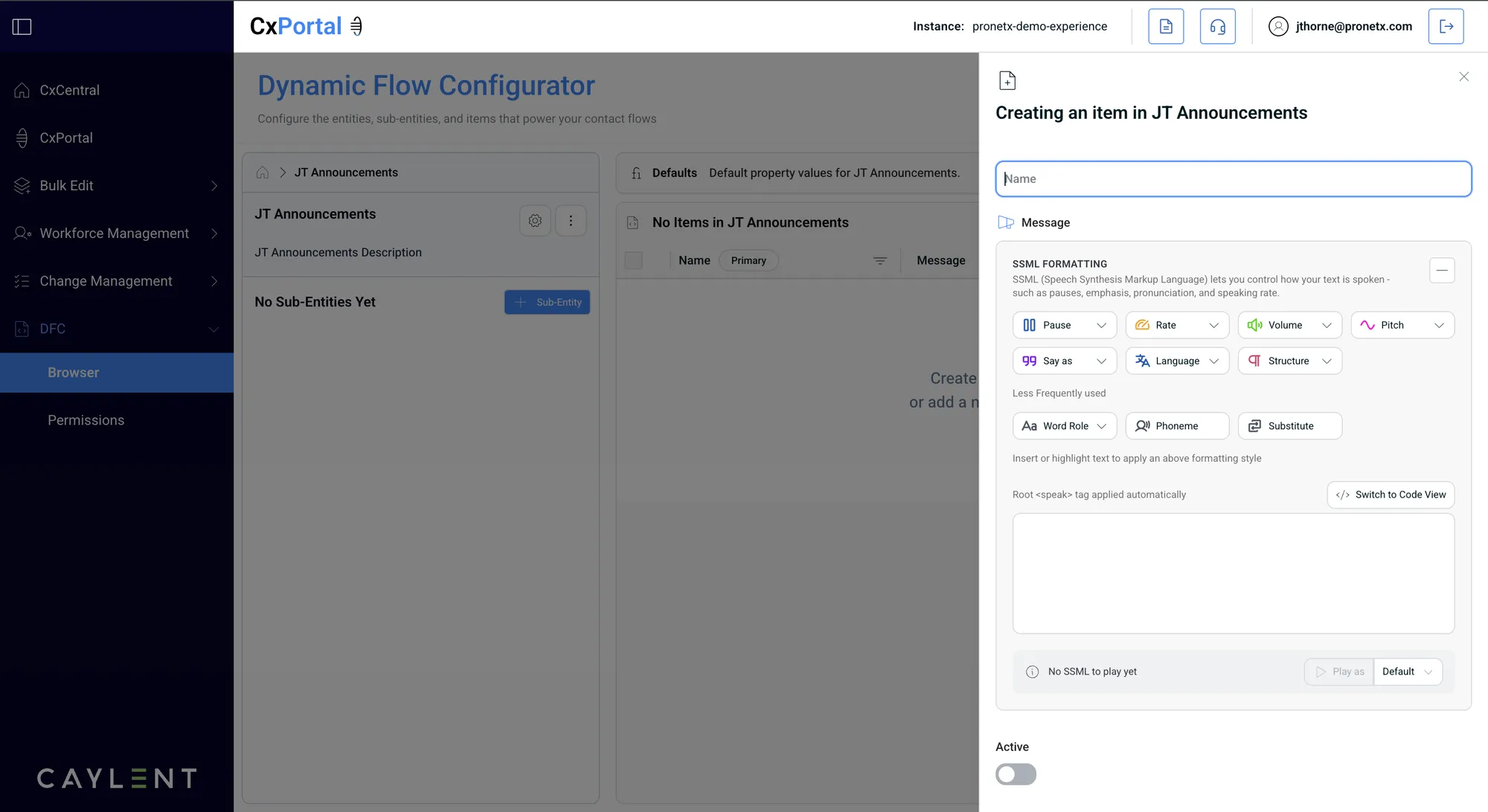

The create-item panel for JT Announcements, with a Name box, an SSML editor for Message and a toggle for Active
Nobody designed this form. It is the schema you just wrote, one input per field, with the editor for each chosen from the field's type.

See what a flow would get

You have two items and the paths that address them. Before going anywhere near a contact flow, you can see exactly what the lookup would return for one.

  1. Open the Path Tester, the test-tube icon in the DFC toolbar at the top right.

  2. Enter /<your initials> Announcements/Roadworks.

  3. Run it.

What comes back is the item resolved: every field, with references followed and Connect resources turned into names and ARNs. This is byte for byte what a flow receives, so anything you can see here a flow can read, and anything missing here will be missing there.

Try the entity path too

Run /<your initials> Announcements/ with the trailing slash and you get both items plus the schema, rather than one item. Worth seeing once, so the difference between the two shapes is concrete rather than theoretical.

Editing an item takes effect immediately

There is no draft state and no publish step. When you save an item, the next contact that asks for that path gets the new value. That is the feature — it is also the thing to respect, because there is no staging gate between you and live callers.

Changing a schema is not the same as changing an item

Editing an item’s value is routine. Editing the entity’s schema changes the contract every flow reading that entity depends on. Renaming a field does not rename the reads inside a contact flow, so the flow starts receiving nothing and takes whichever branch nothing leads to. Treat a schema change as a code change, and search your flows for the field name first.
