Build a simple flow

Create a contact flow from scratch that reads the entity you just made and plays a field from it back to the caller.

Four blocks is enough to prove the pattern. This flow looks up the entity you created in the last section and reads one of its fields aloud.

This page needs Connect access

Building a flow means the Amazon Connect console, which is separate from the CX Portal. If you do not have it, you can raise a case, or read this page and pick the workshop back up at the next one.

Create the flow

  1. In Connect, go to Routing, then Flows, then Create flow.

  2. Name it something you will recognise later, with your initials in it.

Add the four blocks

Drag these four onto the canvas from the block library.

Block What it is for
AWS Lambda function Asks DFC for your item
Set contact attributes Keeps one field out of the answer
Play prompt Reads it to the caller
Disconnect Ends the call

Then join them. Most blocks have a Success and an Error output, and both have to go somewhere or the flow will not publish:

From Output To
Entry AWS Lambda function
AWS Lambda function Success Set contact attributes
AWS Lambda function Error Disconnect
Set contact attributes Success Play prompt
Set contact attributes Error Disconnect
Play prompt Success and Error Disconnect

Sending every error to Disconnect is the blunt version. The demo flow says something useful on each error branch instead, which is worth copying once this one works.

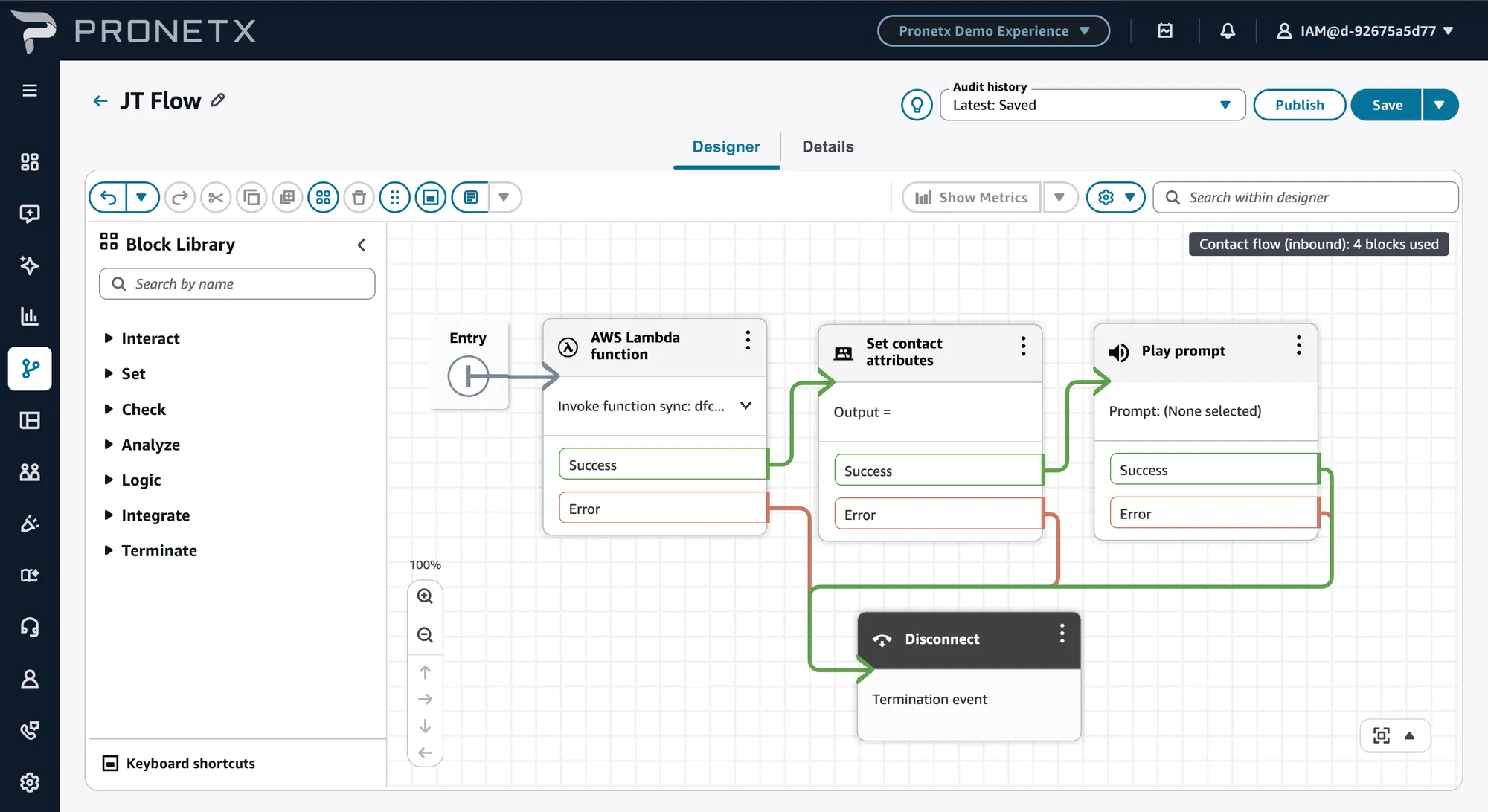

The finished four-block flow in the Connect designer: Entry into AWS Lambda function, then Set contact attributes, then Play prompt, with every Success and Error branch ending at Disconnect
Four blocks, seven connectors. Every output is joined to something, which is what the flow checks for when you publish.

AWS Lambda function

It is in the Integrate group of the block library, or type lambda into the search box.

Not the same block as Invoke module

Invoke module calls another flow module, not a Lambda. The demo uses both: its inbound flow invokes two modules, and those modules call the DFC function. If the function dropdown here is empty, that is the Lambda not being associated with the Connect instance rather than the wrong block.

This is the only block with any real configuration.

Setting Value
Invoke function dfc-query-by-path-prod, the DFC lookup for this instance
Execution mode Synchronous. Asynchronous does not wait for the answer, so there would be nothing to read
Timeout Anything up to 8, which is the maximum
Response validation JSON

Then add one function input parameter:

The path to your itemText
Key:   path
Value: /<your initials> Announcements/Roadworks

That is the same path you saw in the entity browser. The function takes a path and returns the item at it.

The leading slash is required

Paths are matched exactly. The function splits on the last slash, looks the entity up by the part before it, and matches the item by the part after, so /JT Announcements/Roadworks finds the entity stored as /JT Announcements/ while JT Announcements/Roadworks finds nothing. It fails quietly, for the reason in the tip at the end of this page.

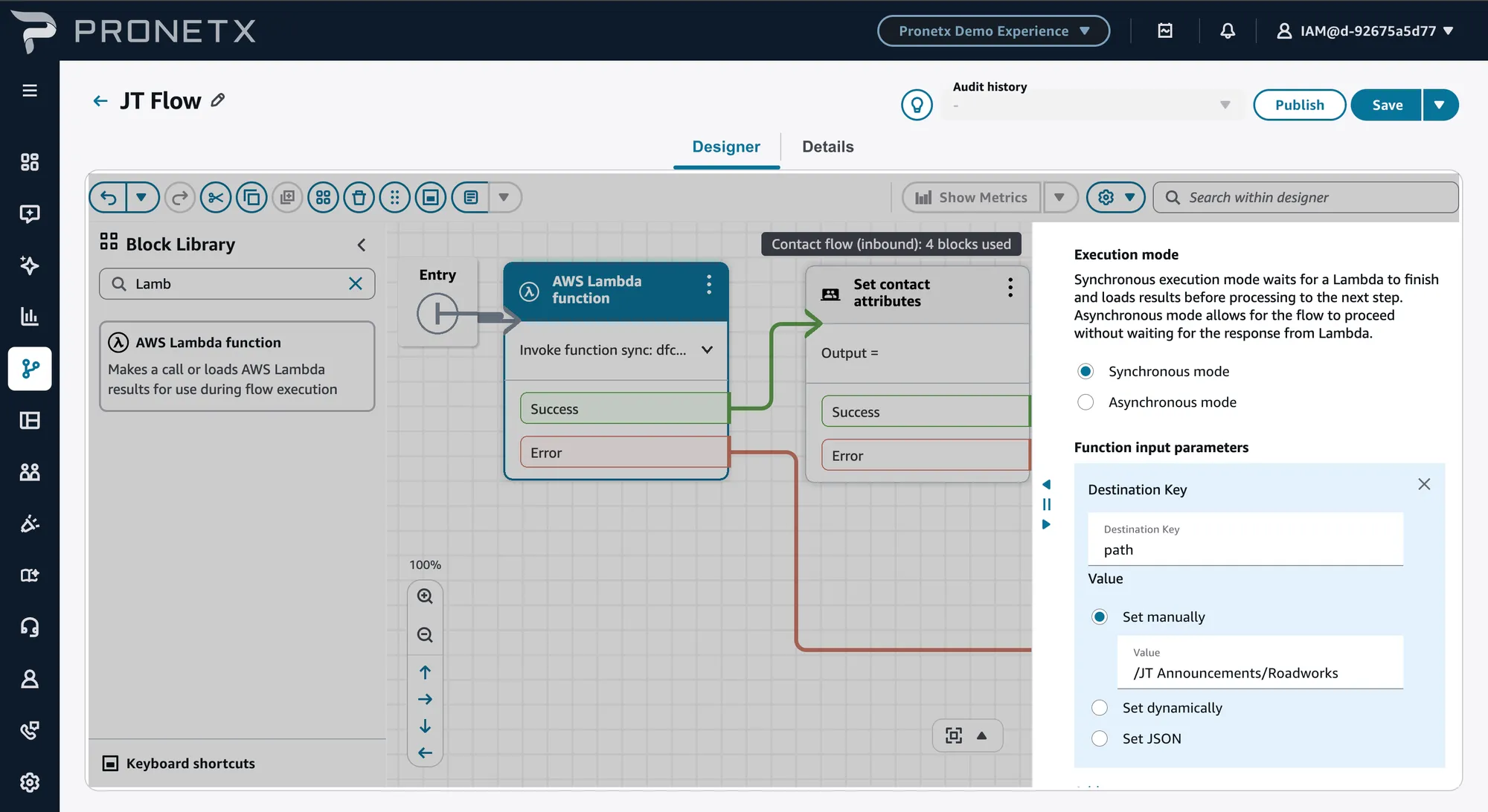

The AWS Lambda function block in the Connect flow designer, set to invoke the DFC lookup synchronously, with a path parameter set to slash JT Announcements slash Roadworks
Four blocks, and only this one is configured. The leading slash on the path is not optional.

Set contact attributes

Take one field out of the response and give it a name the next block can use.

Setting an attribute from the lookupText
Destination key: announcement
Value (from):    $.External.data.message.content

$.External is where the Lambda’s answer lands. data is the item, and everything after that is the field you want.

A Prompt field is an object, not a string

The message field is a Prompt, so it arrives as an object and the text is in .content. Pointing at $.External.data.message gets you the object, which plays as nothing. This is the single easiest mistake to make on this page.

Play prompt

Set it to Text to speech, and use the attribute:

Playing the attributeText
$.Attributes.announcement

Disconnect

No configuration.

Publish and try it

  1. Save and then Publish. Publishing is what makes it callable.

  2. Test it without a phone number: open the flow and use Test chat. The flow will send your announcement text as a chat message.

You have just built the whole pattern. A flow with no business knowledge in it, one lookup, and a caller-facing behaviour that comes entirely from configuration.

If nothing plays

Change the path to something that does not exist and run it again. You will get silence rather than an error, because the function answers “not found” inside a successful response. That is why the demo flow checks for an error code of its own rather than relying on the block’s error branch.
